Bird Safe First Surface Etch
Bird Safe First Surface Etch is a pivotal addition to GlasPro’s expansive Bird Safe line. This innovation is meticulously designed to cater to diverse needs, offering both cost-efficiency and shorter lead times. Adhering seamlessly to the 2”x 2” rule*, Bird Safe First Surface Etch boasts meticulously etched dot and linear patterns on its exterior, creating effective visual markers that deter bird collisions. Versatile in nature, First Surface Etch accommodates various design preferences – from laminated to insulated monolithic glass options. First Surface Etch can also help construction projects achieve certification under LEED®. Embrace innovation today with Bird Safe First Surface Etch and join us in shaping spaces that harmonize functionality, aesthetics, and environmental consciousness.
Product Specifications
- Thickness: 6mm (1/4″)
- Dimensions: Max size 96″ x 156″
- Substrates: Guardian Clear and Guardian Ultra-Clear™
- Warranty: 5 – year warranty
PRODUCTS
LINEAR PATTERNS
ETCHED HORIZONTAL LINES
1/8″ etched lines spaced two inches apart horizontally.

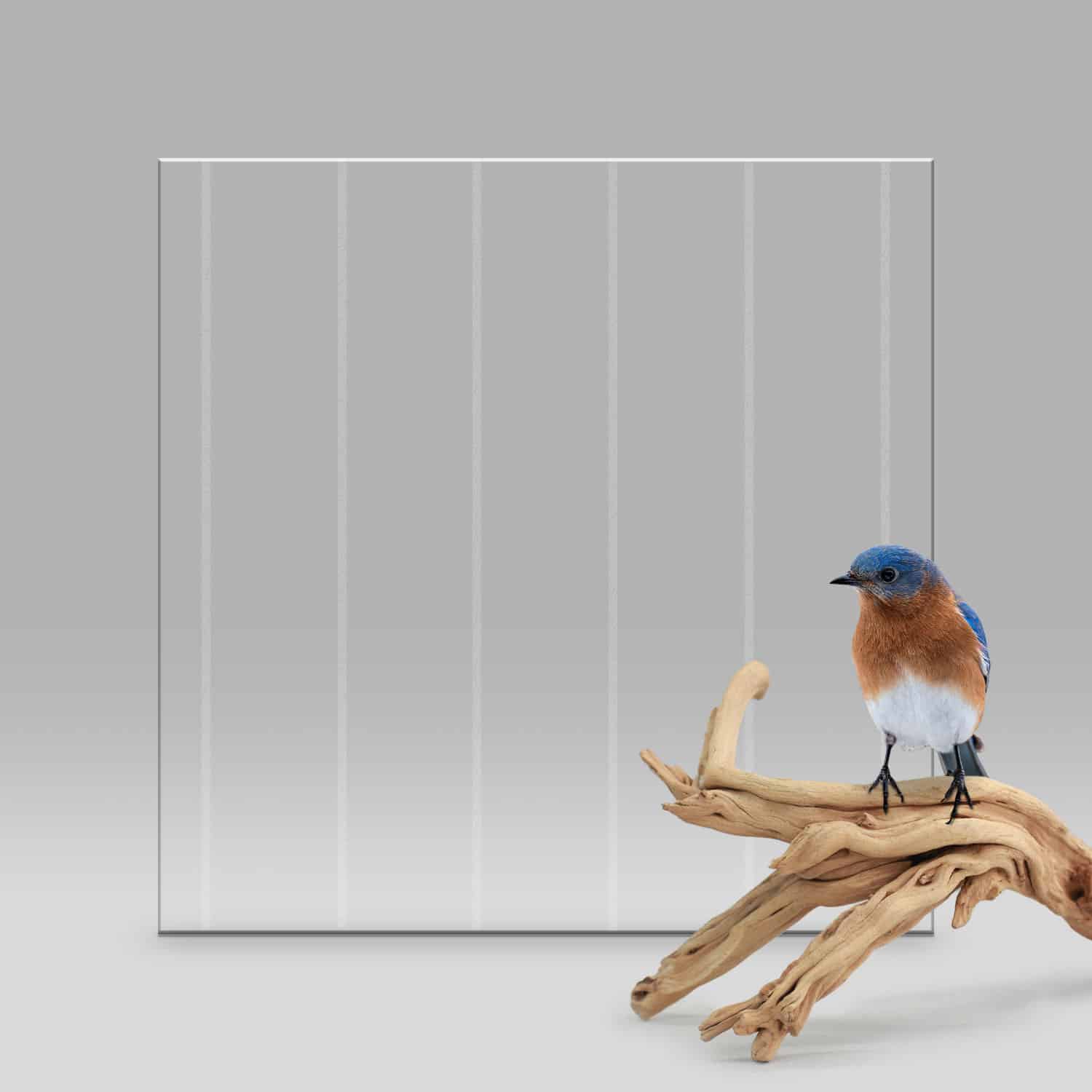

ETCHED VERTICAL LINES
1/8″ etched lines spaced two inches apart vertically.
DOT PATTERNS
5MM DOTS TWO INCHES APART
5mm dots spaced two inches apart in a diamond shape.
4MM DOTS ONE INCH APART
4mm dots spaced one inch apart horizontally and vertically.
ETCHED 20% WHITE DOTS
Acid dots covering 20 percent of the glass surface.
